MICO DTMF Shields

We offer two DTMF shields for Arduino. The basic and the plus models as shown below. Chose the one that fits best your project.

MICO Product Comparison
  DTMF Shield BASIC DTMF Shield PLUS
  Best for simple DTMF detection projects. Best for building an IVR (Interactive Voice Response).

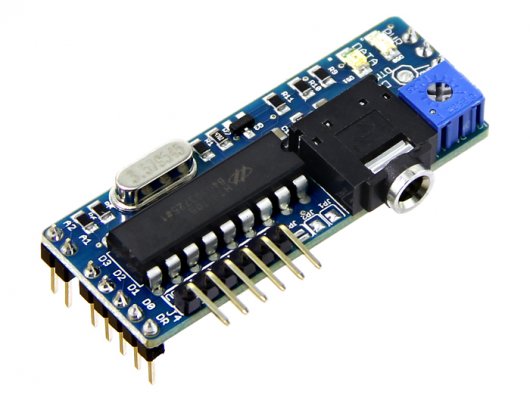

  Arduino DTMF Shield
 MICO Shield board arduino
Receive DTMF yes-icon yes-icon
 Send DTMF yes-icontwo-tone method yes-iconplayback method
Audio Interface 3-pin  (TRS) 4-pin Combo port (TRRS)
Detect Cell Ringing no-icon yes-icon
Answer Call button no-icon yes-icon
Play Audio into Calls no-icon yes-icon
Easy Debug no-icon yes-icon
 docs User Manual, Forum    the basics, getting started, help


BUY NOW

BUY NOW

We’re currently only accepting orders for over 10 units. Please contact us for more information.

Buy your MICO DTMF shield here! Get a 10 % discount when you get both.

Flat shipping rate: $15

Feature explanation:

Detect Cell Ringing: the incoming audio from a cell phone is amplified and fed into an Arduino analog port. The Arduino code will monitor the amplitude of this signal and consider the phone is ringing when the signal is above the configured threshold.

Answer Call Button: this feature emulates the button press of a headset.

Play WAV into calls: play files from the MicroSD card – requires conversion to RAW.

Easy Debug: the Basic DTMF shield requires an oscilloscope to measure signal amplitude into the board. The MICO DTMF shield has a built-in signal amplifier that lets you measure the amplitude of the input signal in a provided sample sketch.
